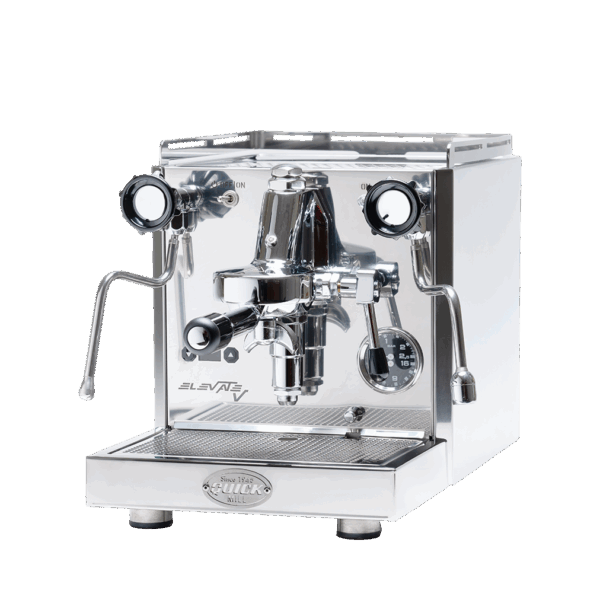

Elevate V

Perfect for elevating your coffee time, where taste is raised to new levels of perfectionism with two separate boilers.... Read more

Skill level

Expert

Temp control

double boiler

PID

Yes

Size

Large

Are you a dealer?

Get in touch with us.

Where to buy

Find the closest store to your home.

Our machines are sold only through the official retailers listed on our website. Purchases made elsewhere are not covered by warranty. Warranty and support are provided directly by the authorized retailer where the machine was purchased. We recommend buying your machine in the country where it will be used, and checking warranty terms with the local retailer.

Customer care

If you have any questions or need assistance with your coffee machine, please contact the store where you purchased it or where you plan to buy one.

Download
technical sheet

Download
catalog

Perfect for elevating your coffee time, where taste is raised to new levels of perfectionism with two separate boilers.Its PID system allows you to adjust the temperatures and pre-brew so that an even tastier and more aromatic coffee can be obtained with a slow extraction process that maximises the aromas of the coffee beans. But its advantages do not end there, because it is equipped with a three-litre tank and can also be connected to the water supply for a limitless experience. A sip at the bar, rich and bold — the world fades, and flavor takes the stage. Elevate V brings that moment home

Technical characteristics

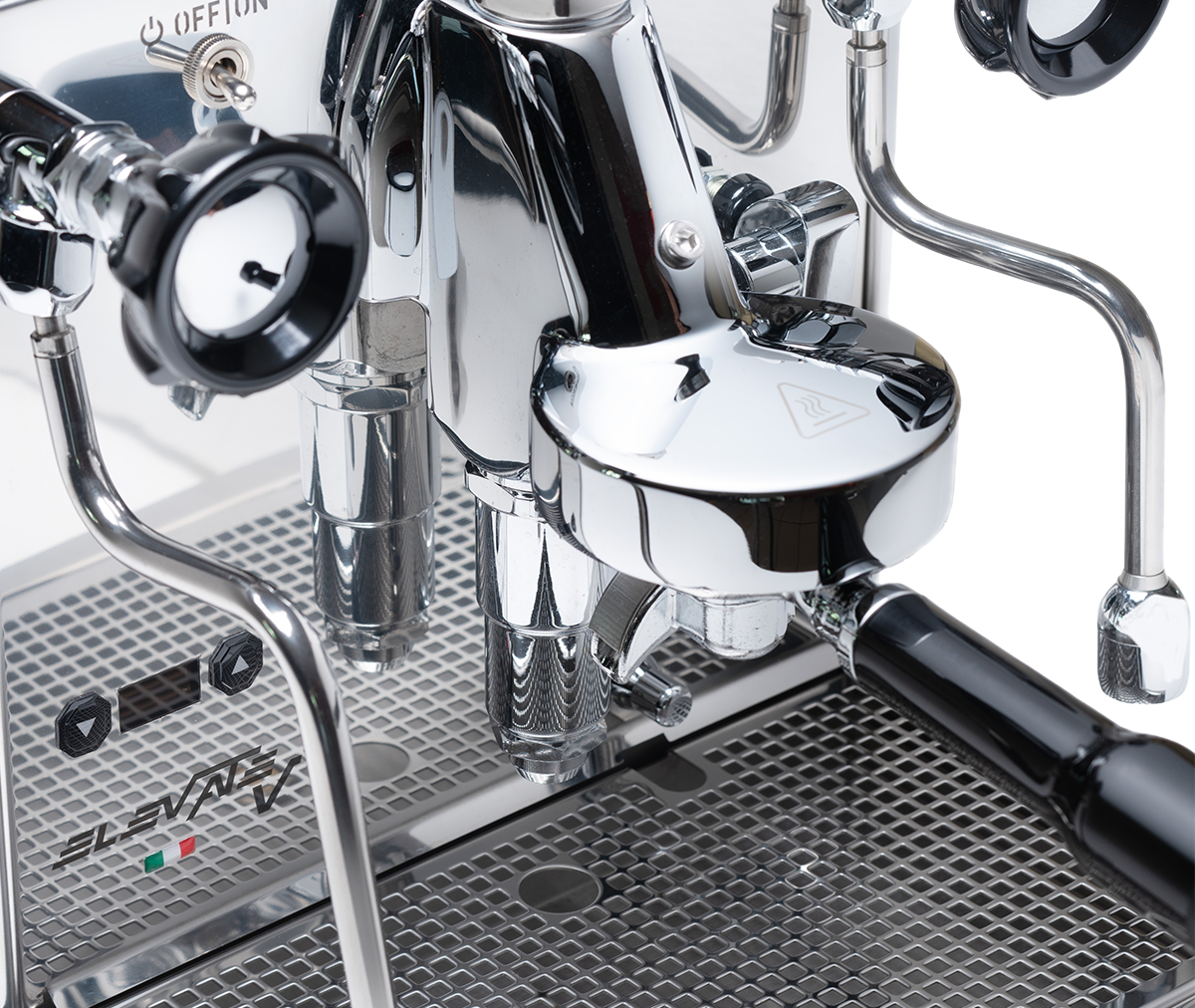

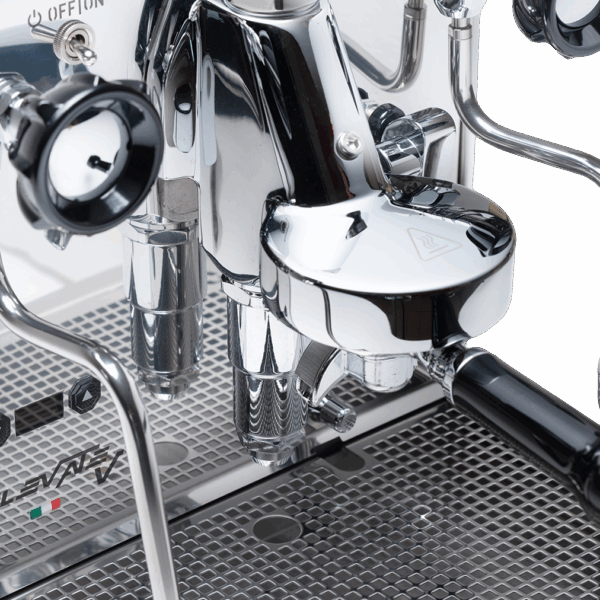

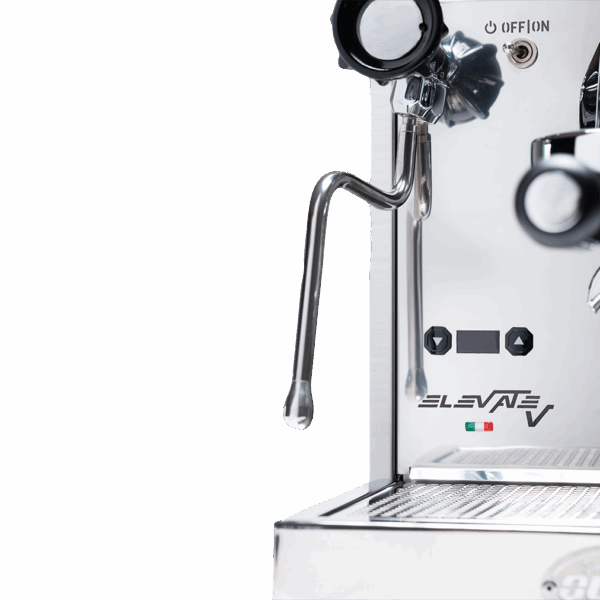

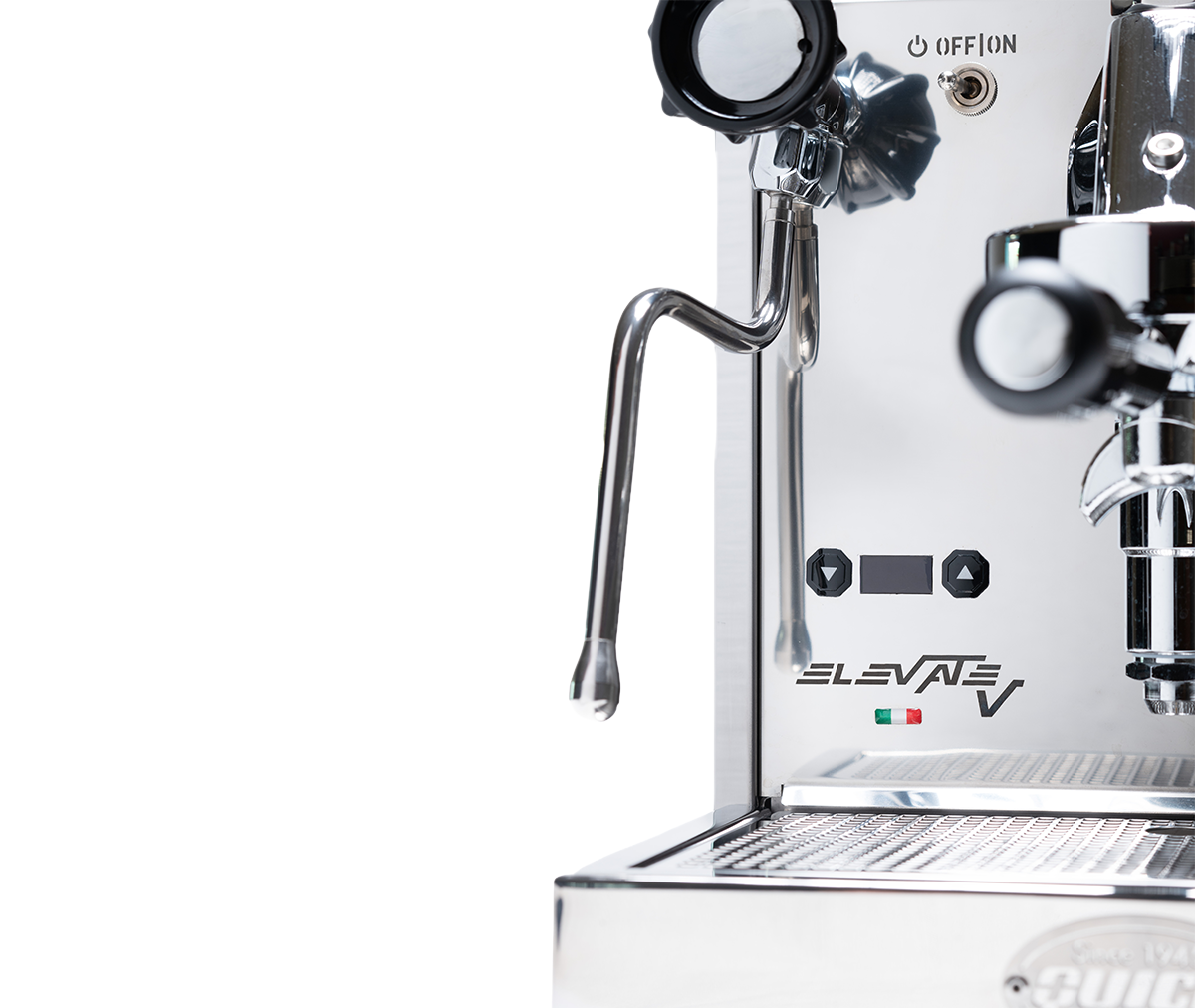

Design & build: Full stainless steel body; Quick Mill brew group with stainless steel mushroom; Anti-burn multidirectional steam and hot water wands; Ergonomic hot water and steam taps (Quick Mill exclusive); On/Off lever switch; Power-on indicator light
Heating system: 0.75 L insulated stainless boiler for coffee dispensing; 1.6 L Insulated stainless steel boiler for steam/hot water supply
Pump: Vibration pump with 30% noise reduction (Quick Mill exclusive)
Safety: Temperature probe (PID-controlled); Vacuum Valve; Safety valve; two manual reset thermostats

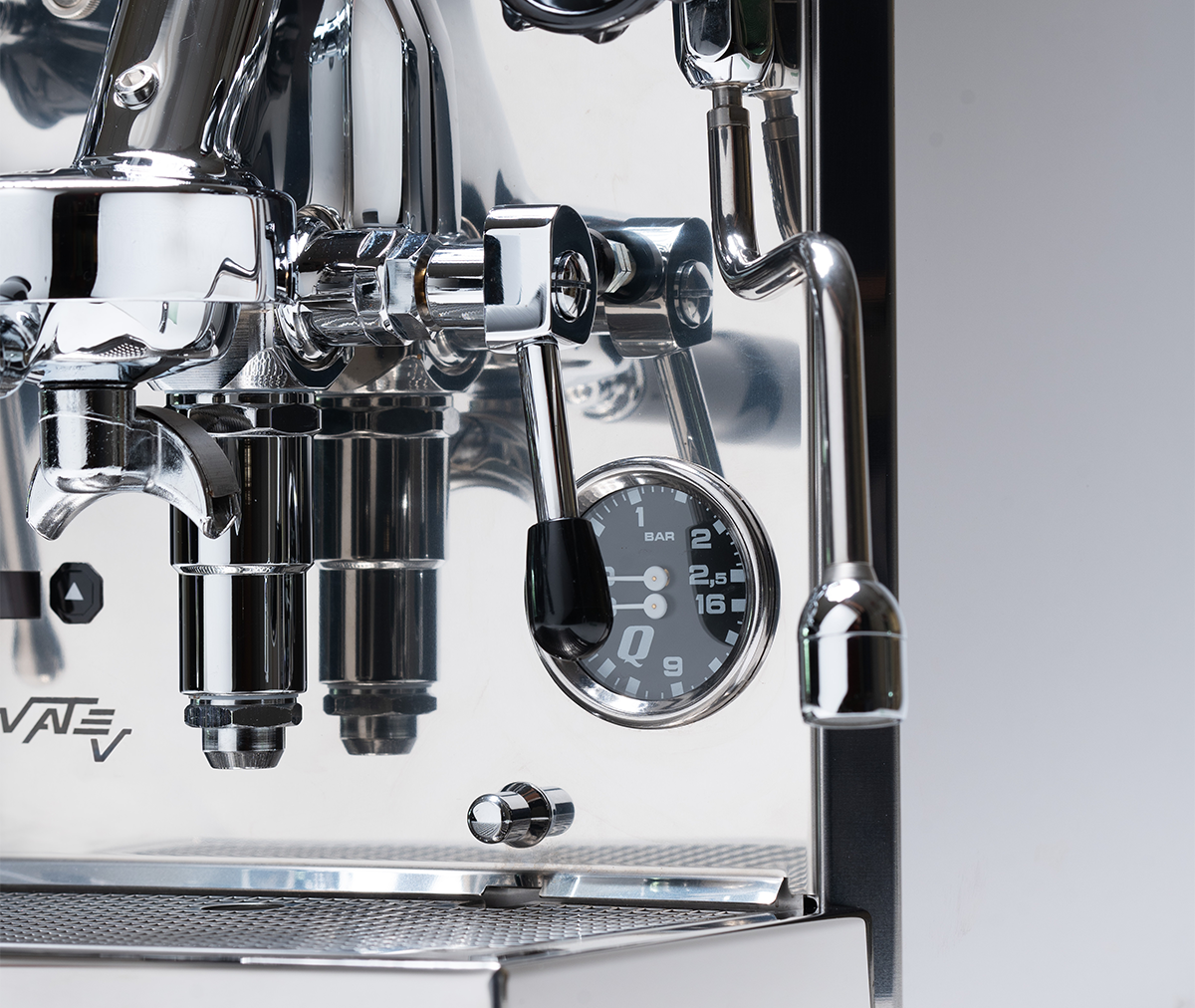

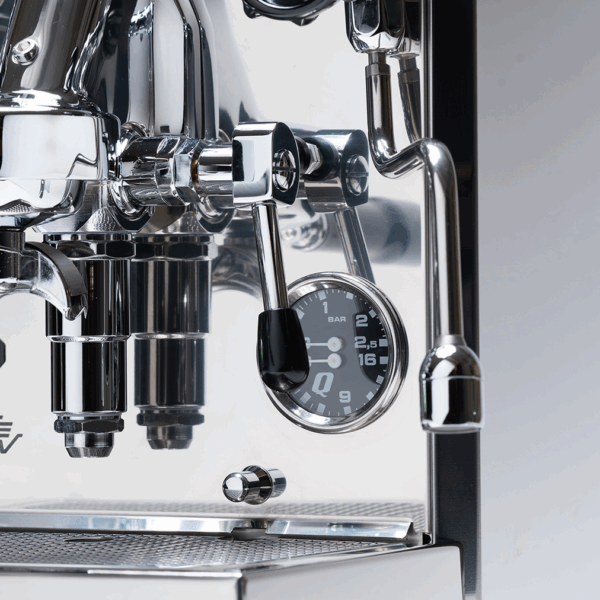

Control and settings: PID temperature control; OLED display for viewing temperature, shot timer, lank of water in the tank and settings; Programmable pre-infusion, standby, eco mode; Probe sensor function; Dual gauge for boiler and pump pressure; Steam/hot water boiler switchable off; On/Off lever switch; Power-on indicator light
Water tank: 3 L tank water

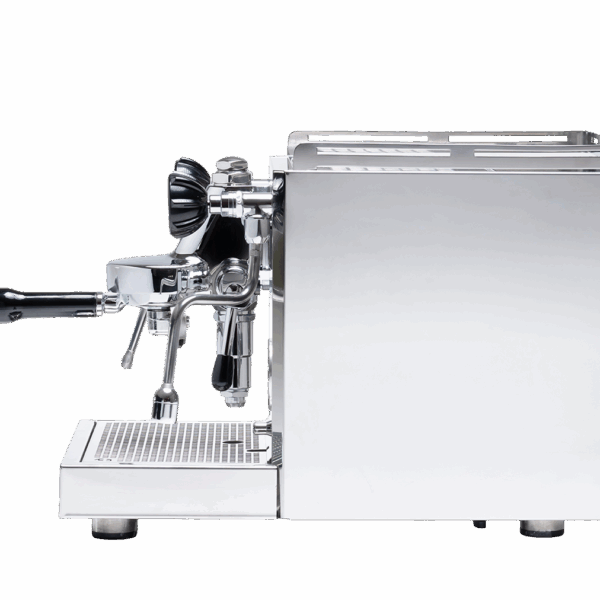

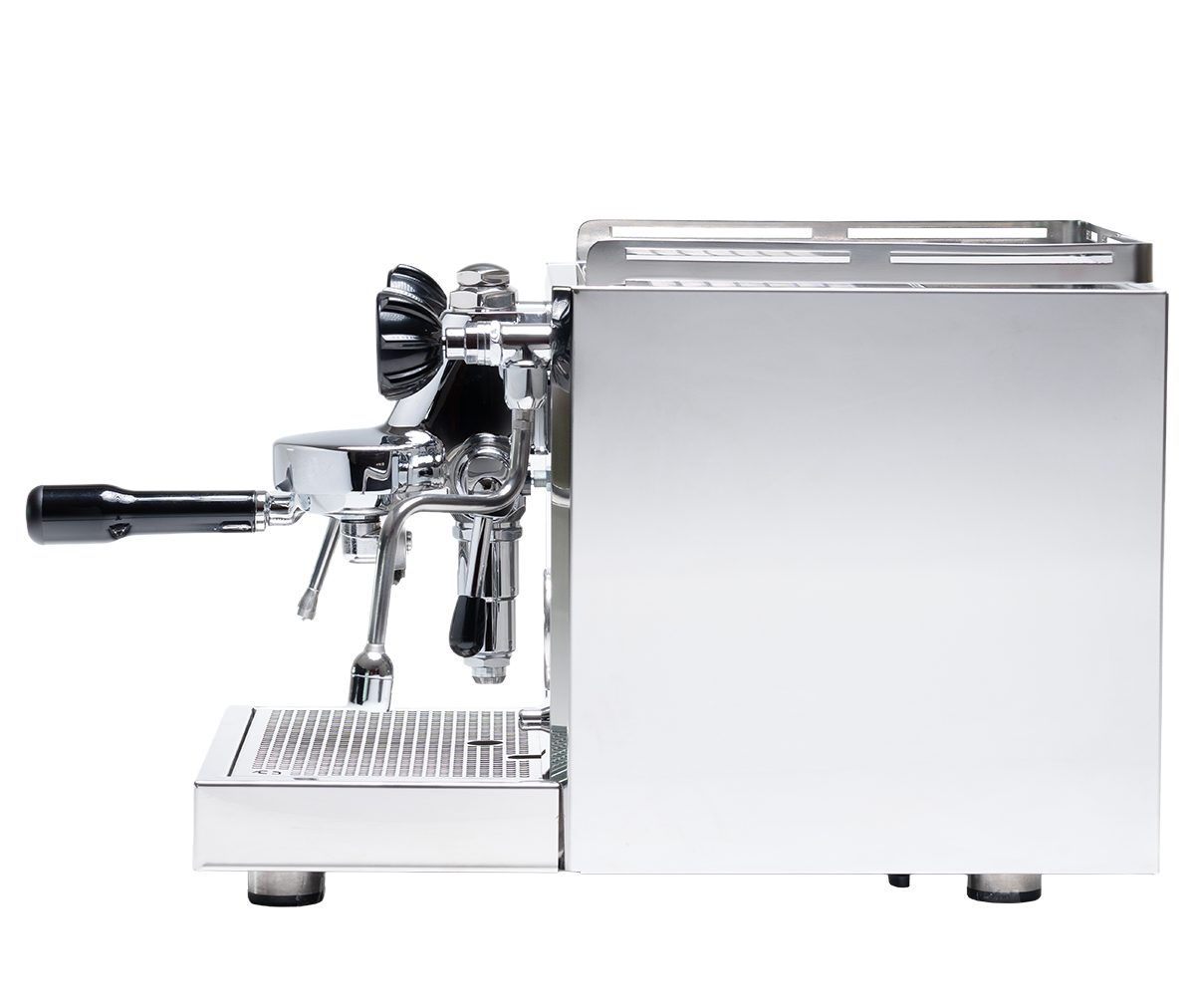

Dimensions: W 304 x D 502 x H 358 mm
Weight: 25 kg
Power supply: 1550 W
Voltage: 200-240 V – 50-60 HZ / 120 V – 60 HZ
